Bullet Resistant Glass Rifle Level 8

Ray-Bar offers ballistic glass with UL752 Level 8 rifle bullet resistant glazing. This rifle resistant glazing provides effective protection for a variety of safety and security applications. (UL752 Level 8 bullet resistance is equal to NIJ 0108.01 Level III requirements.)

This bullet resistant laminated glass can withstand a .308 Winchester round, with no spall. The bullet resistant glazing provides 77% visible light transmittance.

Our 2-1/4” thick bullet resistant laminated glass is comprised of multi-ply laminated glass with interlayers and AR polycarbonate. We provide glass with bullet resistant glazing in custom sizes up to 60” x 96”.

Features of Ray-Bar Bullet Resistant Laminated Glass

  • UL752 Level 8 bullet resistance
  • Level 3 bullet resistant glazing  also available
  • Handgun resistant glazing over multi-ply glass sheet with interlayers
  • 2-1/4” total thickness
  • Resists .308 Winchester round, with no spall on asset side
  • 56% visible light transmittance

Bullet Resistant Glazing Meets

  • UL752 Level 8
  • NIJ 0108.01 Level III
  • ASTM 1036-97
  • ANSI Z97.1
  • CPSC 16 CFR 1201 Cat 2
  • ASTM 1349-96
  • ASTM 1036-1

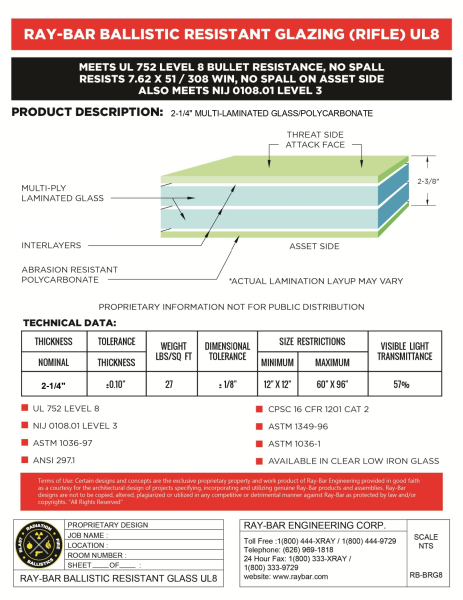

Download the PDF



Contact Us for Complete Ballistic Glass Solutions

In addition to our Level 8 bullet resistant laminated glass, we also offer a full line of ballistic products and bullet resistant glass for all safety and security installations. Request a quote on glass with bullet resistant glazing, or contact Ray-Bar for more information.

×
