Bullet Resistant Laminated Glass

Ballistic laminated glass is a material that is constructed from a combination of standard or low iron glass and polycarbonate or PVB interlayer materials. It is constructed through a high temperature and negative vacuum environment bonding process called lamination that layers polycarbonate or PVB interlayers material between two pieces of glass. This process in various layers and thicknesses can create an impact resistant glass that can withstand the force of certain bullets from a handgun or rifle, depending on the thickness of the glass and materials utilized.


Bullet Resistant Polycarbonate

Bullet Resistant Glass

2 Hour Fire Rated
Bullet Resistant Glass

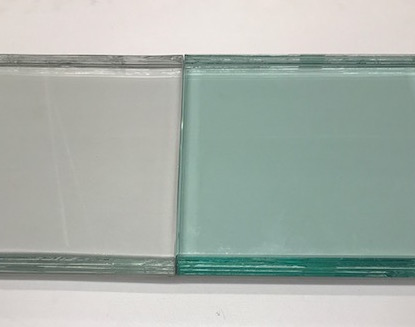

Low Iron vs. Annealed Glass Comparison
Bullet Resistant Glass

When a bullet is fired into the bullet resistant laminated glass, the bullet will strike and pierce the outside layer of the “threat side” face layer of glass. This will reduce velocity and break down and flatten or expand the bullets structure, absorbing the kinetic energy shock through the multiple laminated layers. Therefore, the bullet will not fully penetrate as “spall” through the opposite “safe” asset side consisting of clear polycarbonate material. This is due to polycarbonate material’s ability to absorb the final energy of the bullet as it enters the last layer of clear ballistic resistant material.

Contact us for more information regarding our bullet resistant laminated glazing options. We also manufacture special bullet resistant radiation shielding glass for applications that require multiple performances of protection to address unique threats. If you have any questions call us at 800-444-XRAY (9729), our knowledgeable staff has the expertise to quickly and efficiently respond to your requests.

Ballistic Laminated Glass or Clear Ballistic Polycarbonate Levels of Protection

The different levels of impact resistant glass are determined by the glasses’ overall thickness; the thicker the glass, the higher the level of protection. Bullet resistant laminated glass is available for a wide range of applications, with a general increase in protection level for higher risk facilities, institutions or government sectors. The table below illustrates a basic breakdown of the ways in which the different levels of bullet resistant laminated glass are generally utilized.



Level

Specifications

Applications

U.L. Rating

Weight (Lbs.)

Thickness

UL 752 Level 3

Capable of withstanding gunfire from handguns and is typically used where there is a greater threat to life.

Government facilities, schools, financial institutions, banks, high-risk retail stores

Level 3

Polycarb: 8 Lbs.



LamiGlass: 13 Lbs.

Polycarb: 1.25”



LamiGlass: 1.125”

UL 752 Level 8

Designed to withstand gunfire from assault rifles and automatic weapons. This type of ballistic glass is generally custom manufactured.

Government buildings, courthouses, Embassies, Military bases, police departments

UL Rating Level 8

L4- 11.68

LamiGlass: 26 Lbs.

L4- 1.075”

LamiGlass: 2 3/8”



Bullet Resistant Laminated Glass Options

Depending on your specific needs, Ray-Bar can manufacture provide you with an impact resistant glass product that can provide bullet resistance and numerous other advantages. Some of the specific types of ballistic laminated glass and modular window frame assemblies that Ray-Bar offers, include:

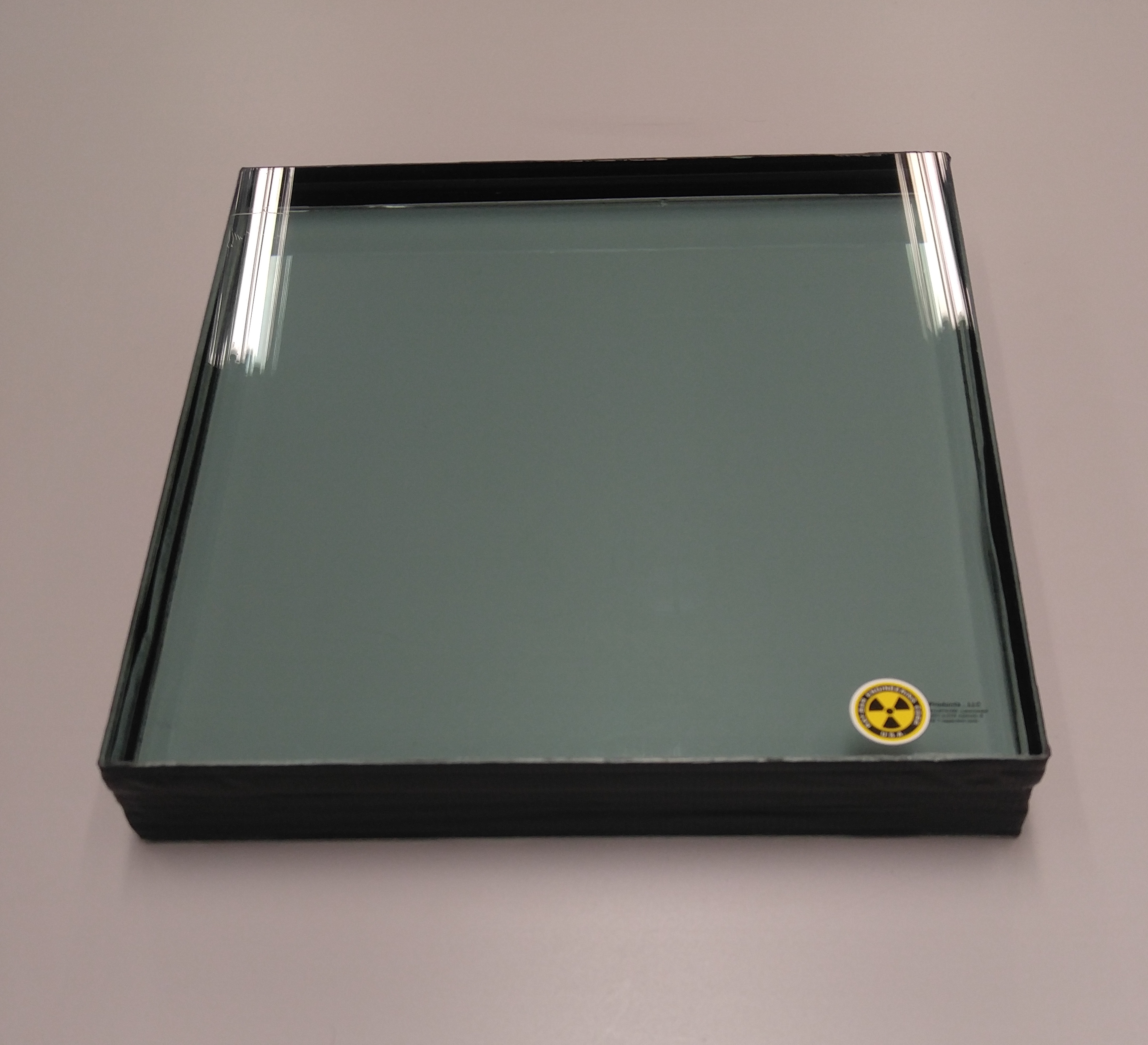

Bullet and Blast Resistant Radiation Shielding Glass for High-Security Dirty Bomb Protective Applications

Ray-Bar’s proprietary bullet and blast-resistant glass for radiation shielding assemblies are a multi-layered product that can protect and reduce exposure against certain isotopic sources of ionizing gamma radiation. Bullet resistant glass for lead shielding is manufactured by infusing multiple layers of Ray-Bar lead-lined x-ray glass and layers of protective clear annealed glass. Our bullet and blast-resistant glass for radiation shielding is specifically designed to provide increased visual clarity and extreme light optimization. Bullet and blast resistant lead glass for radiation shielding is also designed to withstand numerous chemicals and cleaning products, which allows the glass to be effectively cleaned without the concern of the glass being easily damaged.

In addition, Ray-Bar also offers many additional options such as: Low Iron Ultra Clear Glass, Polycarbonate (interior only), 1-Way Mirrored Glass, Switchable Privacy Glass, Frosted Glass, Directional, Bi-Directional, Fire Rating, Powder Coated Window Frames, Stainless Steel Frames, and ballistic resistant products that meet NIJ level 3 and NIJ level 3A or EN 1063 Levels BR4, BR5, and BR6.

Impact Resistant Glass WMFL Detention Glazing

WMFL glass is rated for 60 minutes of physical assault with objects including sledgehammers, claw hammer, propane burner, 1-1/2" pipe, heated blade, as well as ballistic testing with 25 shots of .44 mag. At only 1-1/8" thick it is a very cost effective and robust solution for forced entry or detention centers. For additional info and pricing, click the Request a Quote button on the top right of this page.

High Wind & Extreme Weather Impact Resistant Glass

Impact resistant glass that is specifically designed to withstand high winds and extreme weather such as hurricanes, typhoons and tornados is also rated for missile impact and meets numerous standards, including: ASTM E 1886-05, ASTM Z97.1, ASTM 1036-97, CPSC 16 CFR 1201 CAT 2, ASTM 1349-96, ASTM 1036, AND SGCC 5419.

The impact resistant glass glazing options provide wind protection in the following categories.

Contact Ray-Bar Engineering for Bullet Resistant Laminated Glass Today

Contact us for more information regarding our numerous bullet resistant laminated glass options, or request a quote today for an in-depth price analysis.
