Ballistic Resistant Metal Doors

Ray-Bar supplies ballistic hollow metal doors for all safety applications. We offer UL752 Level 3 handgun resistant doors and UL752 Level 8 rifle resistant doors. Specify a variety of customizable options to create the perfect bullet resistant door for your unique needs; special bulletproof and fire resistant doors are also available. We also offer a full line of ballistic products and bullet resistant glass.

Download the pdf

Request a quote on bullet resistant doors, or contact Ray-Bar for more information.

Ballistic Resistant Metal Door Specifications

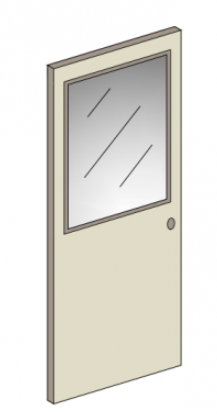

RAY-BAR BALLISTIC RESISTANT METAL DOOR

Ballistic Hollow Metal Doors

  • 16-gauge A60 galvanneal steel construction
  • Standard primer finish
  • Seamless continuous welded edges
  • Reinforced for customers hardware
  • Fast custom fabrication times

Ballistic Resistance Levels

  • Handgun: UL 752 Level 3 / NIJ 111A (0108.01)
    • Resists threats up to .44 MAG
  • Rifle: UL 752 Level 8 / NIJ 111A (0108.01)
    • Resists threats up to 7.62 x 51 / .308 WIN

Finish Options

  • Standard ready to paint primer
  • Solid color powder coated
  • Stainless steel 304 brushed #4

Door Options

  • Vision Window
  • Forced Entry
  • Fire Ratings

Ballistic Glazing Options

  • Laminated Glass (No Spall)
  • Polycarbonate (No Spall)

Request a quote on bullet resistant doors, or contact Ray-Bar for more information.

×
